NEARLY INVISIBLE

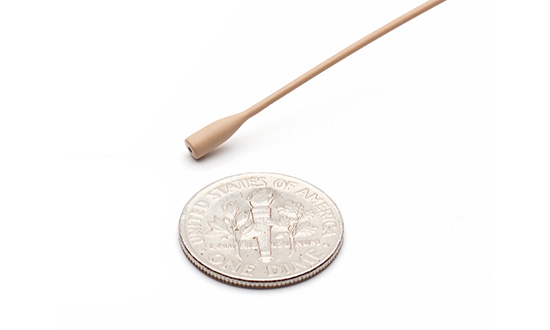

With a diameter of only 0.1” (2.5 mm)—the size of a No. 2 pencil lead—the mic capsule virtually disappears when worn.
H6 Headset
Product Options:
Clear Options
H6 Headset
PRODUCT FEATURES

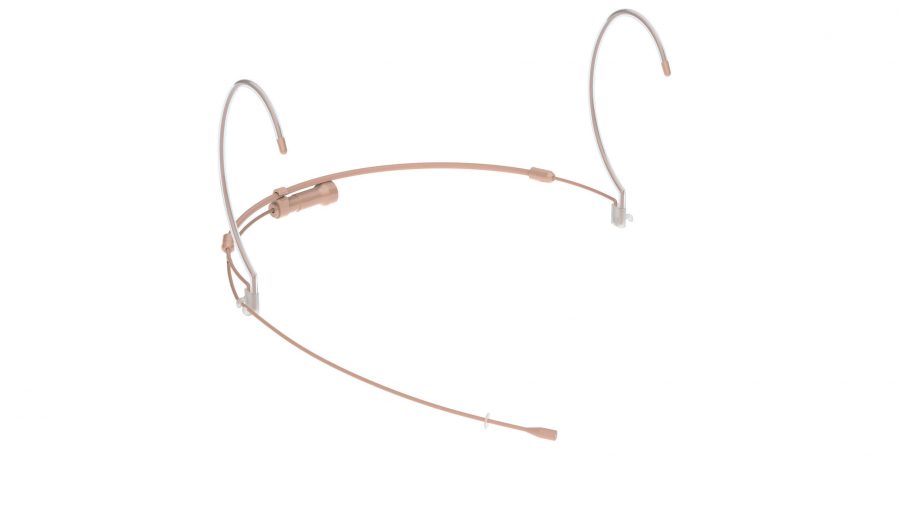

The H6 Headset is the lowest profile headset microphone in the world, combining the transparent sound quality of the E6 Earset with a comfortable, lightweight, and easily adjustable headframe. Available in omnidirectional and pattern-adjustable directional versions, the H6 Headset is perfect for public speaking and vocal performance. The H6 features a sealed connector with exceptional moisture resistance, a slim and nearly indestructible cable, and protective caps to adjust the frequency response (omni) or pattern (directional).

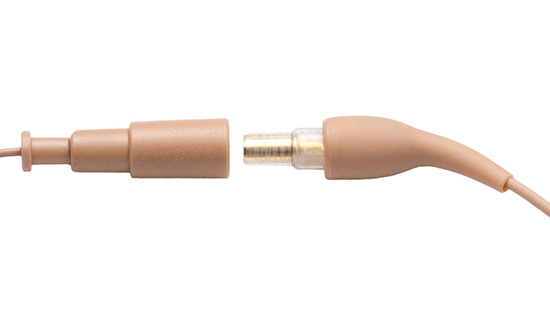

SWEAT-RESISTANT CONNECTOR
The mic detaches from the cable using a new connector with a tight seal against moisture (e.g., sweat).
EXTRA RUGGED CABLE
The 1.2 mm diameter cable uses Aramid strength members and engineered alloys for extreme tensile and flex strength.
EASILY ADJUSTABLE
The headframe can be adjusted to fit different head sizes and the mic boom slides to get the perfect fit.
READY FOR THE EXTREME
The H6 is ready for your demanding environments.
H6 Headset
FROM OUR CUSTOMERS
H6 Headset
“The sound was amazing and the incredibly small microphones also appealed to the TV people, as they were almost invisible. It was fantastic to get such a good result, even when the singers were standing in front of the large orchestra, performing Queen songs with just the head-worn mikes, the sound was amazing. ”
H6 Headset

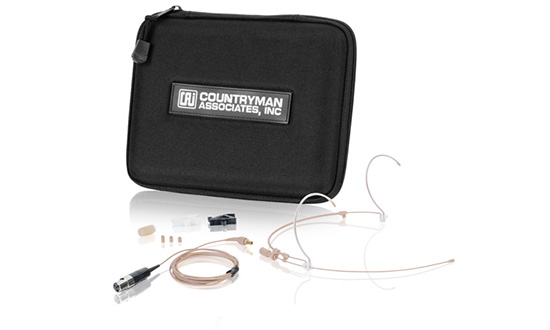

WHAT'S INCLUDED
WHAT’S INCLUDED:
- H6 Headset Microphone
- H6 Headset Cable (optional)
- Black and White Single Tie Cable Clips
- Omnidirectional Protective Caps (+0, +4, and +8 included with Omnidirectional Headsets)
- Directional Protective Caps (Hypercardioid and Cardioid included with Directional Earsets)
- Windscreen
- Carrying Case
TECH SPECS
Frequency Response:
Omnidirectional: 20 Hz to 20 kHz
Directional: 30 Hz to 15 kHz
Directional: 30 Hz to 15 kHz
Operating Current:
500 uA
Operating Voltage:
1 to 2 Volts
Power Supply Voltage:
+3V with 2.7 kOhm load
+5V with 6.8 kOhm load
+9V with 15 kOhm load
+5V with 6.8 kOhm load
+9V with 15 kOhm load
Weight:
0.07 oz (2 g)
Sensitivity:
Omnidirectional W5 (no band): 7.0 mV/Pascal
Omnidirectional W6 (blue band): 2.0 mV/Pascal
Omnidirectional W7 (purple band): 0.7 mV/Pascal
Directional W5 (no band): 6.0 mV/Pascal
Directional W6 (blue band): 1.9 mV/Pascal
Directional W7 (purple band): 0.6 mV/Pascal
Omnidirectional W6 (blue band): 2.0 mV/Pascal
Omnidirectional W7 (purple band): 0.7 mV/Pascal
Directional W5 (no band): 6.0 mV/Pascal
Directional W6 (blue band): 1.9 mV/Pascal
Directional W7 (purple band): 0.6 mV/Pascal
Equivalent Acoustic Noise:
W5: 24 dBA
W6: 29 dBA
W7: 39 dBA
W6: 29 dBA
W7: 39 dBA
Overload Sound Level:
Omnidirectional W5: 120 dB SPL
Omnidirectional W6: 130 dBA SPL
Omnidirectional W7: 140 dBA SPL
Directional W5: 125 dBA SPL
Directional W6: 135 dBA SPL
Directional W7: 145 dBA SPL
Omnidirectional W6: 130 dBA SPL
Omnidirectional W7: 140 dBA SPL
Directional W5: 125 dBA SPL
Directional W6: 135 dBA SPL
Directional W7: 145 dBA SPL
Cable Length:
5 Feet
